This GTX1080 redefined the appearance, more cool than ever before!
[PConline evaluation] Presumably a lot of friends are tempted to have colorful cards in the design of the more normal, the author himself is no exception; However, the recent receipt of a colorful iGame1080 flame god of war X-8GD5X Top AD has changed the author's view Can you see if this card will make you feel refreshed?
Colorful iGame1080 Flame Ares X-8GD5X Top AD Reference Price: Loading... Image Reviews Quote Parameter Overview
The new design should be the most eye-catching colorful GTX1080
Appearance, Colorful iGame1080 Flames Ares X-8GD5X Top AD uses a new silver metal shroud, the middle of a red metal circle to be embellished, and then with 2 × 9cm + 1 × 8cm i-Ring super three fans, the official will call it For: Silver shark radiator.
High-strength black metal backplane with "IGAME" Logo printed in the middle and appropriate hollow design to enhance the thermal performance of the graphics card.
The whole card size is 300 × 105 × 46mm, the standard three fan high-end card size, side is equipped with "IGAME" RGB Logo lighting effect.
Display output interface configuration is still familiar with DVI + HDMI 2.0 + DP 1.4 × 3, public version of the interface configuration, support for popular 4K output and VR applications. At the same time, the baffle has a triangular hollow design to facilitate the side blowing hot air discharge. And, we are familiar with the one-button overclocking button has also been placed here, press the normal mode, bouncing is overclocking mode.
8+8Pin external power supply, 8Pin more than the public version, to help high-frequency.
And, colorful iGame 1080 flame god of war X-8GD5X Top AD can also use iGame-Zone overclocking software for custom color display and respiratory frequency adjustment.
How about a wave of machine renderings? Is the Yan value increased a lot faster than the previous product? Laugh~
Colorful iGame1080 Flame Ares X-8GD5X Top AD Specifications Comparison
Specifications: The biggest difference between this product and the public version is of course the frequency and external power supply. The frequency is increased by 152MHz on the basis of the public version, Boost frequency is up to 1898MHz, and the external power supply is increased by 8Pin on the basis of the public version.
In terms of price, this product's e-commerce offer can go as low as 4299 yuan, compared to the recent price reduction after the GTX1080 (3999 yuan) slightly more expensive on that point, in the end worth not expensive on this 300? Let's go down.
New silver shark radiator, 8+2 phase IPP digital power boost high frequency!Before dismantling, we discovered a set of tools and gloves that came with the graphics card. In this small package, we liked the high-end card gifts series and collected them.
What needs to be said is that the appearance of this card is rather screaming, but in fact it is not difficult to dismantle, and only by unscrewing the back five spring screws can easily separate the heat sink from the PCB.
Colorful iGame 1080 Flames Ares X-8GD5X Top AD adopts a newly developed Silver Shark (Silver Shark) radiator, equipped with a 2×9cm+1×8cm fan, so that the air volume is blown more toward the heat sink fins, and the air volume is increased while the air volume is increased. Strict noise control, with 4 × 8mm + 1 × 6mm pure copper heat pipe, the heat derived from the base faster conduction to the heat sink fins.
It adopts 8+2 phase IPP digital power supply scheme. The self-developed IPP (iGame Pure Power) to pure power supply inductor adopts an integral structure. The shielded shell and the inductor core material are linked together, and the DC impedance of the same size is the lowest, and the application frequency is as high as 5MHz. , High electronic impedance, ultra-low operating temperature and lower EMI electromagnetic interference characteristics.
At the same time, twice the resistance to oxidation and stability of the copper-plated PCB is better, which effectively prolongs the life of the graphics card, enhances the player's stability in the overclocking process, lower impedance prevents circuit blockage, reduces waste heat generation, and improves signal integrity. Reduce the amount of electromagnetic interference.
The tail of the PCB is also equipped with LED lighting effects, this part is the same as the previous product.
Built-in NVIDIA GTX1080 Pascal GP104-400-A1 core, after careful comparison of the Rainbow, on the machine 1759-1898MHz high frequency; and the use of magnesium memory particles, single 1G, 8 total 8G.
Dismantling things here, then see how the performance.
3DMark Theory Test and Game Performance TestNVIDIA GTX 1080
NVIDIA GTX 1080Ti
NVIDIA GTX 980Ti
AMD R9 Fury X
AMD Crimson Edition 17.3.1
Test platform description: The test platform uses a consumer-grade platform Z270+i7 7700K top-matching. A total of five video cards were selected for comparison testing in this test. They were Colorful iGame 1080 Flame Ares X-8GD5X Top AD, NVIDIA GTX1080, and NVIDIA GTX1080Ti. The NVIDIA GTX980Ti and AMD R9 Fury X are driven by the latest AMD Crimson Edition 17.3.1 and NVIDIA GeForce 378.78 WHQL.
3DMark Theory Performance TestIn addition to the two FireStrike Ultra & Extreme tests that we commonly use, the 3DMark theory test section added 3DMark's latest DirectX 12 benchmark test for game PCs, aiming to bring you a more comprehensive reference.
Theoretical Test Summary: Comprehensive three 3DMark theoretical performance tests, Colorful iGame1080 Flames Ares X-8GD5X Top AD running points compared to the public version of GTX1080 about 5% increase, the performance rate is not obvious, but I vaguely feel that the potential of this card is not limited to , Let's see how the performance of the game can be determined again!

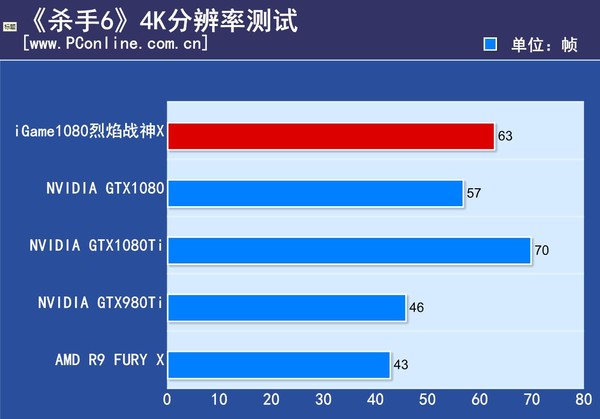

Game performance testThe future is undoubtedly the world of DX12. In this test, we selected 6 representative DX12 game masterpieces. Among them, there are no shortage of native killer 6s, Tomb Raider 10, Singularity ash, and DX12. Warhammer: Total Wars and Outbreak: Human Crush, etc., as well as the blockade of the entire territory that was supported by the addition of DX12.
Test summary: The game test part, Colorful iGame 1080 Flames Ares X-8GD5X Top AD Almost rolled across the board, performance is quite to force! Overall, the performance of this card in practical applications is better than when the theory runs.
Let's look at how power consumption and temperature control are.
Platform power testIn order to get closer to the real scenes in the player's daily applications and to more fully understand where the power consumption advantages of the Rainbow iGame 1080 Fire God of War X-8GD5X Top AD are, we will use three scenarios to measure the platform power consumption. It is a 3DMark stress tester, game player, and standby mode.
Power consumption test summary: thanks to the excellent electrical performance brought by the luxurious materials, this high-frequency non-public GTX1080's power consumption is not much higher than the public version, even in the standby power consumption is also lower than the public version A loss, comparison GTX980Ti and AMD R9 Fury X and other products highlight the energy efficiency.
Video card temperature testIn order to test the extreme temperature of the colorful iGame 1080 Flame Wars X-8GD5X Top AD, we used the latest 3DMark FireStrike Ultra stress test to test.
Test summary: It can be seen that after using the brand-new brand new Silver Shark heat sink, the temperature of the copying machine has been significantly improved. The GPU core of the full loader is only 69°C. This is in a non-public GTX 1080 product. Counted well.
Card noise testHere we measure the fan noise when the noise tester is running a 3DMark stress test.
Test summary: 45 dB, very quiet, completely imperceptible when loaded into the chassis! Not bad!
About noise:
0 - 20 db: very quiet, almost imperceptible; 20 -40 db: quiet, like whisper; 40 - 60 db: normal general indoor conversation; 60 - 70 db: noisy: denervated; 70 -90 db: Very noisy, nerve cells are damaged. 90 - 100 db: Intensified noise, impaired hearing; 100 - 120 db: Unbearable, one minute or temporary deafness. 120 decibels or more: Extremely paralysed or fully paralyzed; 300 decibels or more: People with a radius of 20 km cannot repair deafness.
The ladder diagram shows that: As it should be, we placed the colorful iGame 1080 Flame Ares X-8GD5X Top AD on the GTX1080.
PConline evaluation room summary
Colorful iGame1080 Flame Ares X-8GD5X Top AD Reference Price: Loading... Image Reviews Quote Parameter Overview
As another masterpiece of Rainbow's high-end flame wars Ares X series, iGame 1080 Flames Ares X-8GD5X Top AD has a higher machine frequency and a new Silver Shark radiator, to bring more outstanding performance, temperature control and noise control; and The overclocking performance of the 8+2 phase IPP digital power supply solution and SPT over-plating silver technology is also very exciting.
The selling price is not high, and the electricity supplier generally quotes 4,299 yuan; in general, this is a product that can compete with other major AIC's high-end competing products. At the same time, the new design also gives people a new look, I do not know how to look at the intentions?
2, new silver shark radiator, lower temperature, lower noise
3, the new RGB lighting effect, the appearance is more dazzling and more
4, 8G big memory fun 4K, VR no pressure
5, 8 + 2 phase IPP digital power supply scheme to help overclocking 1, the name really got too long, laugh ~
