20% increase in battery life compared to two versions of 360 mobile phone N4S
[IT168 evaluation] 360 mobile phones have previously launched the N4S Snapdragon version, using the 14nm manufacturing process Qualcomm Snapdragon 625 processor, and also equipped with a 5000mAh large battery, can provide better endurance. 360 mobile phone N4S already exists in two versions, N4S uses MediaTek Helio X20 processor, priced at 1199 yuan, the other general version is 360 mobile phone N4S Xiaolong version, the use of Qualcomm Xiaolong 525 processor, priced at 1299 yuan. What's the difference between the two versions of N4S besides the CPU? Let's compare it.
â–² 20% increase in battery life compared to two versions of 360 mobile phone N4S
360 mobile phone N4S mainly uses long battery life as a selling point, has a 5000mAh battery, and has excellent performance, 360 mobile phone N4S has a very high price, is a thousand yuan price with a 10 core CPU, 5000mAh battery, fingerprint identification, fast charge Features such as mobile phones. The 360 ​​mobile phone N4S Xiaolong version can be seen as an improved version of the 360 ​​mobile phone N4S, using the more power-saving Xiaolong 525 processing, in the case of the same battery capacity, enhanced mobile phone life.
360 mobile phone N4S Xiaolong version and 360 mobile phone N4S parameter comparison phone model 360 mobile phone N4S Xiaolong version 360 mobile phone N4S screen size 5.5 inch 2.5D 5.5 inch 2.5D resolution 1920x1080 1920x1080 processor Qualcomm Xiaolong 625 MediaTek MT6797M frequency 8 core 2.0GHz 10 core 2.0GHz body memory 64GB 32GB operating memory 4GB 4GB main camera 13 million, PDAF 13 million, PDAF front camera 8 million, F/2.0, support beauty 8 million, F/2.0, support beauty body size 151.3 X74.6x8.35mm 151.3x74.6x8.35mm Body Weight 169g 169g Battery 5000mAh 5000mAh Body Color Gold/Powder/Gray OS 360OS 2.0 (android6.0) 360OS 2.0 (android6.0) Network Standard Mobile/UNICOM/ Telecom Mobile / Unicom / Telecom price 1299 yuan 1199 yuanIn terms of hardware configuration, the 360 ​​mobile phone N4S Xiaolong version was changed to use Qualcomm Xiaolong 625 processor, Xiaolong 625 used 14nm manufacturing process, has 8 A53 cores, the core frequency is 2.0GHz, and another 4GB of large memory and 64GB of the fuselage Storage, body storage is larger than N4S. Another 360 mobile phone N4S Nine Dragons version of the same camera and N4S, the back of the main camera 16 million pixels, while the front camera 8 million pixels while adding soft lights. The screen uses a 5.5-inch 1080P screen and the screen is covered with 2.5D glass. The system is equipped with 360 OS 2.0, supports a number of mobile phone security technologies and dual WeChat functions, and also possesses a black technology with multiple card numbers, red envelope alerts, and location crossings. 360 mobile phone N4S Xiaolong version is equipped with 5000 mA battery, and supports 360 turbo flash charging technology, support 9V2A fast charging.
Appearance: No change

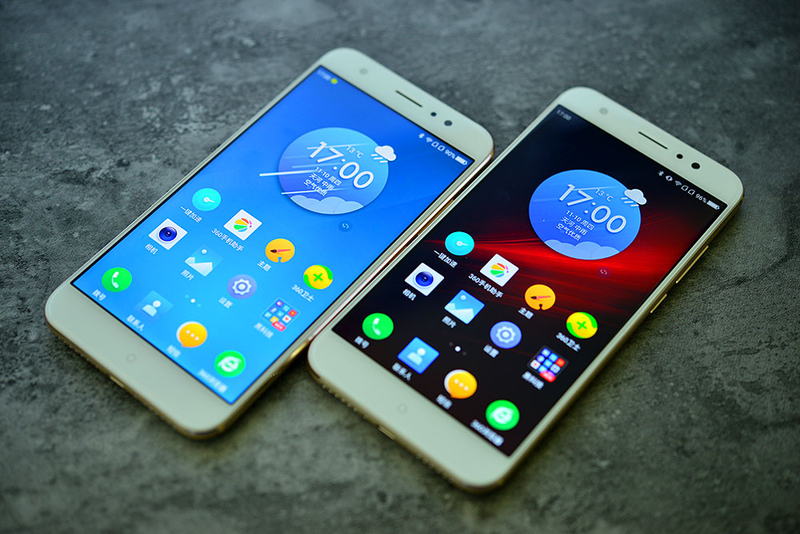

â–² left: 360 mobile phone N4S Xiaolong Edition Right: 360 mobile phone N4S
360 mobile phone N4S Xiaolong version and 360 mobile phone N4S design is the same, has a sleek and symmetrical design appearance, the entire mobile phone body is very rounded, mobile phone uses a lot of round elements and symmetrical design, circular elements and symmetrical design throughout the phone's The design, coupled with 2.5D glass, makes the look of the phone look good.
â–² left: 360 mobile phone N4S Xiaolong Edition Right: 360 mobile phone N4S
360 mobile phone N4S Xiaolong version and 360 mobile phone N4S are all made of metal material, the whole machine accounted for more than 98% of the metal, while the increase in the battery body thickness of only 8.35mm, the use of capacity density reached 700WH / L The battery will keep the normal range while the capacity of the mobile phone increases.
â–² Up: 360 mobile phone N4S Xiaolong Edition Next: 360 mobile phone N4S
360 mobile phone N4S Xiaolong version and 360 mobile phone N4S are symmetrical on the back of the design, the back of the camera, fill light and fingerprint recognition are on the back of the phone's midline and uses a round design, the camera is slightly protruding, the camera with 16 million The pixel and camera adopt a more advanced ISOCELL technology. Compared with the traditional BSI sensor, a physical barrier is formed between the pixel and the adjacent pixel, and the space between them is reduced to avoid the interference problem formed between individual pixels in the BSI sensor. The camera supports PDAF phase focusing technology, 0.1 seconds fast focus.
â–² left: 360 mobile phone N4S Xiaolong Edition Right: 360 mobile phone N4S
360 mobile phone N4S Xiaolong version uses 8 million pixels front camera, front camera is also upgraded, with F2.0 large aperture, support Fotonation4.0 smart beauty mode, and equipped with front-facing beauty fill light, so that the self-timer is even better.
â–² Up: 360 mobile phone N4S Xiaolong Edition Next: 360 mobile phone N4S
360 mobile phone N4S Xiaolong version and 360 mobile phone N4S use touch button design, HOME button uses a round design, the other is the application of the background button on the left is the return button, the phone chin position looks very simple, there are three touch buttons below the LED lights .
summary:
360 mobile phone N4S Xiaolong version and 360 mobile phone N4S design is basically the same, the same metal phone back cover, the same screen configuration, is also built-in 5000mAh, is also 8.35mm thickness, big battery will inevitably call the mobile phone volume upgrade However, the thickness of 8.35mm is still an acceptable range. As a whole, the 360 ​​mobile phone N4S Nine Dragons Edition and 360 mobile phone N4S still feel quite good, and the workmanship and feel belong to the upper middle level of the thousand Yuan machine.
Charging and battery life comparison: 14nm processor more advantages
Life Comparison:
360 mobile phone N4S Xiaolong version uses a large 5000 mA battery, and 360 mobile phone N4S, 360 mobile phone N4S Xiaolong version uses Qualcomm Snapdragon 625 processor also helps to enhance the mobile phone's battery life. The Qualcomm Snapdragon 625 processor uses a 14nm manufacturing process to bring better power control. The 360 ​​mobile phone N4S uses MediaTek's Helio X20 processor, which has a three-cluster architecture, high performance and low power consumption.
â–² PCmark battery life test (left: 360 mobile phone N4S Xiaolong Edition right: 360 mobile phone N4S)
We used PCmark's battery test to test the 360 ​​mobile phone N4S Snapdragon Edition and 360 mobile phone N4S. PCmark mainly simulates everyday use, including web browsing, video playback, picture editing, and so on. You can see 360 ​​mobile phone N4S Xiao Long version test results are 9 hours and 25 minutes, while the 360 ​​mobile phone N4S score only 7 hours and 51 minutes.
summary:
360 mobile phone N4S Xiaolong version has a 5000 mA battery, while using Qualcomm Snapdragon 625 processor, through the above test can see Xiaolong 625 processor to bring better battery life performance, Qualcomm Snapdragon 625 for mobile phone battery life The increase in time has a very positive effect.
Fast charge comparison:
â–² 360 mobile phone N4S Xiaolong version supports QC3.0 fast charge
360 mobile phone N4S Xiaolong version also uses the turbo flash charging technology, providing up to 9V 2A fast charging specifications, but need to pay attention, because 360 ​​mobile phone N4S Xiaolong version of the turbo flash charging technology is based on Qualcomm QC fast charging program can be seen To this program is to automatically adjust the charging voltage during the charging process, so that the charging process generates less heat and is safer.
â–² 360 mobile phone N4S use MediaTek PE fast charge
360 mobile phone N4S is using MediaTek's PE fast charging program, using 12V1.2A charging specifications, in the actual charging power 360 mobile phone N4S Xiaolong version and 360 mobile phone N4S are around 12W, charging power is close. In addition, because the two mobile phones use different fast charging schemes, the chargers of the two mobile phones are not universal.
â–² Charging time
360 mobile phone N4S Nine Dragons version uses 9V 2A fast charge, it takes 150 minutes to be full of 5000mAh battery, and 360 mobile phone N4S need 160 minutes to be full of 5000mAh battery, two mobile phones charge time difference of 10 minutes, charging speed due to two The charging parameters of the users are similar, and the 360 ​​mobile phone N4S Snapdragon version using the Nine Dragons program did not show its advantages. Overall, the basic changes were not significant.
summary:
However, we believe that the fast charging of the 360 ​​mobile phone N4S Xiaolong and 360 mobile phone N4S is still relatively conservative compared to other brands, the entire process takes more than 2 hours before it will be full of 5000 mA battery, a little long time, if you can configure specifications The high 12V 2A is even better.
Performance comparison: A72 architecture performs better
â–² Qualcomm Xiaolong 625
The 360 ​​mobile phone N4S Xiaolong version uses the Qualcomm Snapdragon 625 processor. The Snapdragon 625 processor has the advantage of adopting 14nm manufacturing process, and its power consumption is very low. Although Xiaolong 625 belongs to Xiaolong 600 series, Xiaolong 625 uses the latest generation of 14nm process technology, compared with the previous generation of Xiaolong 617, the power consumption is reduced by 35%, and it is equipped with eight Cortex-A53 processing cores. Up to 2GHz.
â–² MediaTek Helio x10 Specifications
360 mobile phone N4S uses MediaTek Helio X20 processor, MediaTek Helio X20 uses two A72 core + 4 large four small eight A53 core, three cluster design, 20nm manufacturing process. The Helio X20 has the advantage of having two A72 cores and a triple cluster design. The A72 core brings outstanding performance, while the three cluster design can make the phone more energy-efficient when it is idle or at low intensity.
Ann rabbit test:
â–² Ann Bunny Test: Left 360 Mobile Phone N4S Xiaolong Edition Right: 360 Mobile Phone N4S
You can see 360 ​​is to see the 360 ​​mobile phone N4S using Helio X20 processor brings very good performance, security Bunny score is 84,144 copies, while 360 ​​mobile phone N4S Bone Dragon Bunny Ann rabbit score is 65236 points, the difference between the two is close to 2 extremely. This difference is mainly due to the fact that the Helio X20 processor used in the 360 ​​mobile phone N4S has two A72 cores, which has a very significant effect on performance improvement. The Xiaolong 625 used in the 360 ​​mobile phone N4S Xiaolong version has only 8 A53 cores, architecture and performance. There is a certain gap between Helio X20 and the A72 core. However, in general, the safety of two mobile phones must have been regarded as the upper reaches of the rabbit, although there is a certain gap in performance, but for daily use can basically be easily deal with.
PCmark test
â–² PCmark test: Left 360 mobile phone N4S Xiaolong Edition Right: 360 mobile phone N4S
PCmark test is mainly to simulate the daily use of the test, you can see the 360 ​​mobile phone N4S Xiaolong version of the very decisive 360 ​​mobile phone N4S, it is estimated that the 360 ​​mobile phone N4S Xiaolong version of the test content execution efficiency than the 360 ​​mobile phone N4S higher. Although the 360 ​​mobile phone N4S score did not have a 360 phone N4S Snapdragon, but the performance of the two mobile phones are very good, for the test of web browsing, video editing, picture editing and office applications can be very smooth running.
3Dmark test
â–² 3Dmark test: Left: 360 mobile phone N4S Xiaolong version Right: 360 mobile phone N4S
The Xiaolong 625 processor used in the 360 ​​mobile phone N4S Xiaolong was integrated with the Adreno 506 GPU, and the 360 ​​mobile phone N4S used the Helio X20 to integrate the Mali T880 MP4, which can be seen to have certain differences in performance. Through the 3Dmark test, you can see that 360 mobile phone Xiaolong version ES3.1 score is 461 points, 360 mobile phone N4S ES3.1 score is 933 points, this part of the 360 ​​mobile phone N4S has more than 360 mobile phone N4S Xiaolong version a lot, to ES3 The .0 test scores 360 mobile phone N4S further expanded. It is certain that the 360 ​​mobile phone N4S uses Helio X20 processor 3D performance is even better, A72 architecture CPU core plus Mali T880 MP4 play a very significant role for 3D performance.
summary:
360 mobile phone N4S Xiaolong version and 360 mobile phone N4S use different CPUs, bringing a certain gap in performance, comprehensive performance on 360 mobile phone N4S uses Helio X20 processor to bring better performance, thanks to the A72 core provides Strong performance, so that the 360 ​​mobile phone N4S lead the 360 ​​mobile phone N4S Snapdragon version in the security Bunny test and 3Dmark test. For everyday use, the two mobile phones have provided enough good performance, so there is no need to worry about insufficient use of the problem, of course, if you want better performance you can choose 360 ​​mobile phone N4S, you want to endurance better you can choose 360 ​​mobile phone N4S Xiaolong version .
Photo comparison: Qualcomm ISP is better
â–² 360 mobile phone N4S Xiaolong version and 360 mobile phone N4S use the same camera
360 mobile phone N4S Xiaolong version and 360 mobile phone N4S are using 16 million pixel main camera, use Samsung s5k3p3 sensor, support PDAF phase focus, bring faster focus speed, the lens group is the same, also has a large aperture F2.0. In terms of hardware and parameters, both cameras are the same, but due to the use of different CPUs, the camera's ISP is not the same. Who is the MediaTek's ISP and Qualcomm ISP?
â–² 360 mobile phone N4S Xiaolong version proofs (click to enlarge)
â–² 360 mobile phone N4S proofs (click to enlarge)
â–²100% magnification
You can see the screen color and brightness 360 mobile phone N4S and 360 mobile phone N4S Xiaolong version is almost, but after zooming in 100% you can see 360 ​​mobile phone N4S Xiaolong version of the details of the performance is even better, and 360 mobile phone N4S have a certain smear.
â–² 360 mobile phone N4S Xiaolong version proofs (click to enlarge)
â–² 360 mobile phone N4S proofs (click to enlarge)
â–²100% magnification
Photographs of large scenes can be seen 360 mobile phone N4S Xiaolong version of the brightness than the 360 ​​mobile phone N4S higher, the details of the performance is quite good, after zooming in the picture can be seen 360 mobile phone N4S color performance is darker, and 360 mobile phone N4S Xiaolong The color of the edition is more natural.
â–² 360 mobile phone N4S Xiaolong version proofs (click to enlarge)
â–² 360 mobile phone N4S proofs (click to enlarge)
â–²100% magnification
Macro performance due to 360 mobile phone N4S Xiaolong version and 360 mobile phone N4S use the same lens group, focusing distance is the same, but there is a certain difference in picture quality, you can see the 360 ​​mobile phone N4S Xiaolong version of the quality Better than the 360 ​​mobile phone N4S, the 360 ​​mobile phone N4S Xiaolong version has a higher sharpness.
â–² 360 mobile phone N4S Xiaolong version proofs (click to enlarge)
â–² 360 mobile phone N4S proofs (click to enlarge)
â–²100% magnification
You can see 360 ​​mobile phone N4S photo effect color more good eye, the color is more vivid, and 360 mobile phone N4S Xiaolong version of the color is more real and natural. After the two mobile phones zoomed out, the smearing effect was still relatively strong, and the 360-degree mobile phone N4S Xiaolong version had a stronger focus than the 360 ​​mobile phone N4S.
â–² 360 mobile phone N4S Xiaolong version proofs (click to enlarge)
â–² 360 mobile phone N4S proofs (click to enlarge)
â–²100% magnification
The color performance of the 360 ​​mobile phone N4S is stronger than that of the 360 ​​mobile phone N4S, but the color temperature of the screen is warmer. The white balance of the 360 ​​mobile phone N4S is relatively accurate and the color is natural. After zooming in, you can see the details of the 360 ​​mobile phone N4S Nine Dragons better than the 360 ​​mobile phone N4S, the screen sharper.
â–² 360 mobile phone N4S Xiaolong version proofs (click to enlarge)
â–² 360 mobile phone N4S proofs (click to enlarge)
â–² 360 mobile phone N4S Xiaolong version proofs (click to enlarge)
â–² 360 mobile phone N4S proofs (click to enlarge)
â–² 360 mobile phone N4S Xiaolong version proofs (click to enlarge)
â–² 360 mobile phone N4S proofs (click to enlarge)
summary:
The 360 ​​mobile phone N4S Nine Dragons and 360 mobile phone N4S use the same sensor and lens group, but there are certain differences in the shooting results, 360 mobile phone N4S color performance, eye-catching, and 360 mobile phone N4S Xiaolong version of the color is natural . Details of the performance of the 360 ​​mobile phone N4S Xiaolong version better, sharper picture. Although the same CMOS, the same lens group, but the ISP is not the same, Qualcomm ISP and MediaTek's ISP in the photo-optimization there is a certain difference, resulting in the difference between the two mobile phone camera.
Summary: Xiao Long version of the endurance strong MediaTek version of good performance
Through the previous comparison, we can see the difference between the 360 ​​mobile phone N4S Snapdragon and the 360 ​​mobile phone N4S. Although the appearance is the same, even a lot of hardware is the same, but the difference in CPU brings different performance and endurance performance. 360 mobile phone N4S Xiaolong version uses Qualcomm Snapdragon 625 processor follow-up performance has been improved, but the performance is also slightly worse than the 360 ​​mobile phone N4S, this is also a choice, in the camera, the two hands also have a certain gap, different ISP brings different shooting results. Two mobile phones as a thousand yuan near the high cost of the product, each has its own advantages, the following we will sum up.
â–² left: 360 mobile phone N4S Xiaolong Edition Right: 360 mobile phone N4S
360 mobile phone N4S Xiao Long Edition advantages
1,360 mobile phone N4S Xiaolong version uses Qualcomm Snapdragon 625 processor, using 14nm manufacturing process, bringing better power control, so that the mobile phone's battery life has been significantly improved.
2. In terms of photographing, the 360 ​​mobile phone N4S Xiaolong version used the Xiaolong 625 integrated ISP to improve the picture quality and the white balance was more accurate, and the details were even better.
360 mobile phone N4S Xiao Long Edition disadvantages
1, due to the use of Qualcomm Snapdragon 825 processor, relative to MediaTek Helio X20 architecture is also different, 8 and A53 framework Snapdragon 625 performance than the Helio X20's A72 architecture is somewhat worse, but for daily use performance is sufficient.
For the crowd: there are requirements for mobile phone life, for users who have requirements for photographing
â–² left: 360 mobile phone N4S Xiaolong Edition Right: 360 mobile phone N4S
360 mobile phone N4S advantages
1,360 mobile phone N4S adopts MediaTek Helio X20 processor, adopts 10 and three clustered architecture, and has 2 A72 cores, bringing very good performance.
360 mobile phone N4S disadvantages
1, due to Helio X20 using 20nm manufacturing process and high-performance relationship A72 architecture, 360 mobile phone N4S performance in life than the 360 ​​mobile phone N4S Xiaolong version slightly inferior, but both mobile phones are equipped with a 5000mAh battery, although the battery life is not 360 mobile phone N4S Xiaolong version but the endurance performance is definitely the industry's upper reaches of the level.
For the crowd: Users with performance requirements
